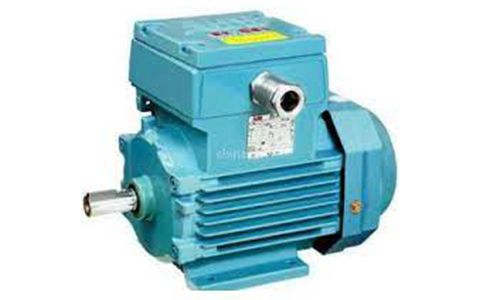

The M2JA-BP explosion-proof variable frequency motor is developed by ABB Motor Company by applying the new explosion-proof motor manufacturing technology and combining the characteristics of the Chinese GB3836 standard. It is currently the most advanced domestic factory-use Class 4 explosion-proof motor (Exd II BT4). Product temperature group T1- T5.
The M2JA-BP explosion-proof variable frequency motor is developed by ABB Motor Company by applying the new explosion-proof motor manufacturing technology and combining the characteristics of the Chinese GB3836 standard. It is currently the most advanced domestic factory-use Class 4 explosion-proof motor (Exd II BT4). Product temperature group T1- T5.
In hazardous areas, the correct use of explosion-proof electrical devices is extremely important. For this reason, many countries have regulations on the structure and usage of explosion-proof electrical devices. GB 3836~2000 The standard for electrical equipment for explosive gas environments is equivalent to IEC60079, but is higher than the IEC60079 standard. According to my country's specific conditions, several key points of my country's original standards were added to IEC60079 to form the GB 3836 explosion-proof standard. new features.
Efficient
It reaches the second level value of the European CEMEP-EU efficiency grade motor standard and complies with the energy efficiency limit value of the People's Republic of China national standard GB18613-2002 for small and medium-sized three-phase asynchronous motors.
Dual bandwidth voltage
The voltage range is 220V~690V, suitable for 50Hz and 60Hz power supplies.
Low noise
By optimizing electromagnetic design, ventilation conditions, structural dimensions and other technologies, the M2JA series motors have lower noise.
High bearing load capacity
The motor uses deep groove ball bearings with long service life. The 80-132 center height motor is permanently lubricated, and the 160-355 is equipped with a refueling device.
Good reliability
The motor has a fully enclosed air-cooled structure, with a protection level of IP55. The materials and processes meet environmental requirements. The motor has high mechanical strength, is sturdy and durable, and has strong anti-rust and anti-corrosion properties.
The winding has good reliability, adopts F-class insulation structure, and has B-class assessment. And PTC thermistor
The ambient air temperature changes with the seasons but does not exceed -15℃~40℃
Altitude: no more than 1000m
Frequency: 50Hz/60Hz
Voltage: 220V~690V
Working mode: Continuous (S1)
Starting method: Full voltage starting, Y-△ starting or reactance starting
Transmission mode: Elastic coupling or spur gear transmission can be used. Insulation and temperature rise: F grade. However, the stator winding temperature rise limit is 80K, which is assessed according to Class B (resistance method). The allowable temperature of the bearing does not exceed 95°C (thermometer method).
Cooling method: IC411
Voltage and performance parameters:
The M2JA series motor adopts a wide voltage design, and the efficiency, power factor and speed of the motor under various voltage conditions vary slightly.
50Hz: 220-240V/380-420V; 380-420V/660-690V, △/Ya connection.
60Hz: 460V: ≤3kW, Y connection; >3kW, △ connection.
If the user requires a specific working voltage, it can be supplied according to special requirements.
