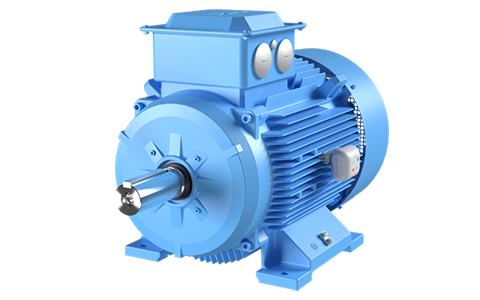

ABB low-voltage motors are backed by ABB's best-in-class quality and support, and their performance is recognized by a large number of customers and OEMs (Original Equipment Manufacturers). The motor achieves IE4 efficiency.
General purpose performance motors are readily available for fast delivery.
There is a wide range of options to choose from and most changes only take a day or two.
Available in efficiency levels IE2 to IE4.
62 or 63 series bearings from a reliable manufacturer.
Smaller size bearings are lubricated for life.
Class C3 coating systems resist harsh conditions.
Some standard designs are available from stock, while customer and application-specific solutions are produced to order and can be customized to meet specific needs.
Thanks to ABB Group's efficient logistics system, motors can be quickly customized to meet your needs.
Model：M2BAX
Efficiency：IE1,IE2,IE3,IE4
Frame Size：H71-355
Power Range：0.12-315kW
Pole：2P~8P
Frequency：5~70Hz
Voltage：220~690V
Protection Level：IP55/IP56/IP65/IP66
Cooling Method：IC411/IC416/IC418
Start Mode：DOL/VSD
Brake：NA
Encoder：NA
Options：100+
Energy Efficiency Standards：EU,CN,AU*,SG*
Ship Inspection Certificate：CCS,BV,ABS,LR,NK...
ABB IE2 IE3 M2BAX 低压一般用途电机样本-20201009版.pdf
